Smart Energy Watcher

  1. Smart Energy Watcher
image description
+
image description
+
image description
+

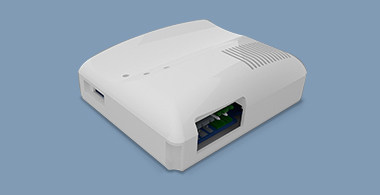

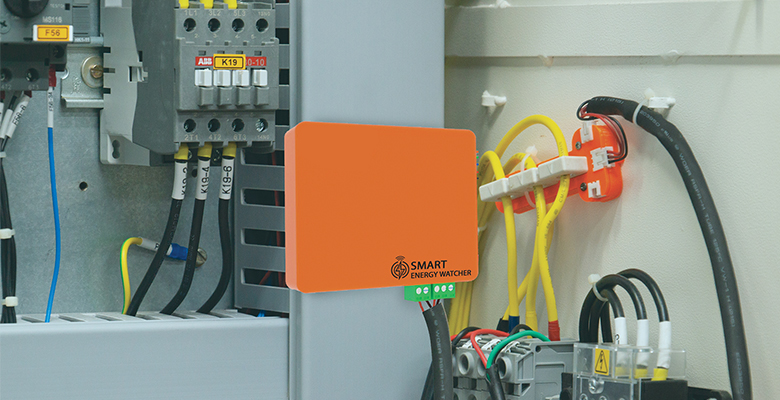

The 3-Phase Energy Reader is a high accuracy electrical power measurement system. It is capable of handling AC loads up to 150A. There is a built in SMPS incorporated, thus it can be directly connected to the AC mains. The energy readings from the meter can be transmitted to a remote receiver wirelessly, which is then sent to the cloud via an IoT gateway. These energy readings can be accessed and analyzed remotely using smart phones.

Features


  • Power measurements:
    • RMS and peak Current
    • RMS and peak Voltage
    • Active, Reactive and Apparent power
    • Power Factor
  • Digital Calibration for power readings
  • Single 5V supply, low power operation
  • Energy readings can be accessed and analyzed via smart phones
  • Encrypted wireless transmission
  • Easy installation
  • Can be directly connected to AC mains
  • Power readings of individual phase can be measured
  • Each phase readings are updates every second

3-PHASE ENERGY TRACKER
