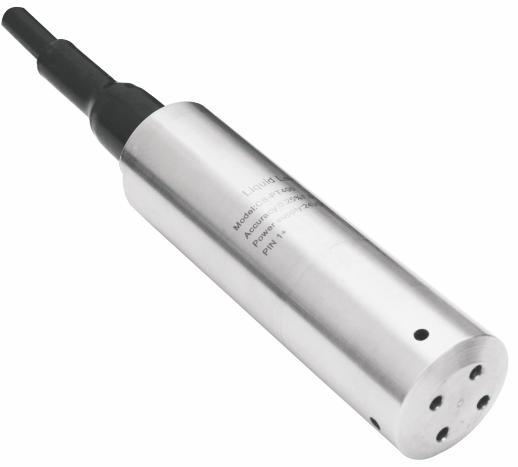

View the TIBS-HYD-LVL-09 hydrostatic level sensor in detail
Reliable and highly accurate liquid level measurement for water, diesel, gasoline, and mild corrosive liquids. Stainless steel housing with ASIC technology for demanding applications.
The TIBS-HYD-LVL-09 series of level transmitters feature reliable and highly accurate liquid level measurement for water, diesel, gasoline, and mild corrosive liquids.
±0.5%F.S accuracy ensuring precise liquid level measurement
Available for OEM integration with custom specifications
Measurement range from 0~3 to 200mH2O for diverse applications
Intrinsic safety certificate, explosion proof and CE certified
Non-polarity two-wire current output for easy installation

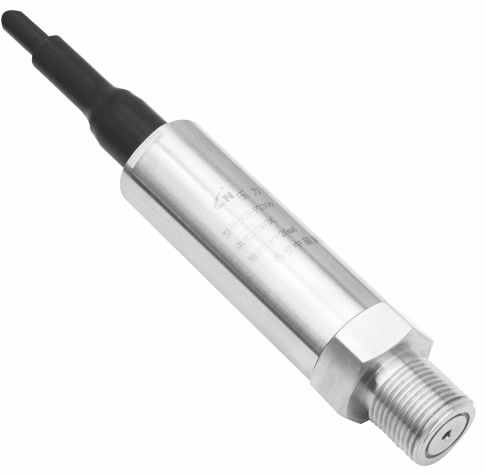

Submersible & fixed installation with IP68 protection
View the TIBS-HYD-LVL-09 hydrostatic level sensor in detail
Complete technical data for the TIBS-HYD-LVL-09 series
| Items | Specifications | Remark |
|---|---|---|
| Measurement range | 0~3~200mH2O | 1mH2O=9.81kPa |
| Overload pressure | 1.5 times of full range | — |
| Failure pressure | 3 times of full range | — |
| Accuracy | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S | — |
| Stability | Typical: 0.1%F.S, Max: 0.2%F.S | — |
| Operation temperature | -40~85°C | — |
| Compensating temperature | -10~70°C | — |
| Medium Compatibility | All corrosive media compatible with 1Cr18Ni9Ti and 316L | — |
| Electrical feature | Two-wire type / Three-wire type | — |
| Signal output | 4~20mA / 0~5V / 0~10V | — |
| Power supply | 10~36Vdc (two-wire) / 10~36Vdc/ac (three-wire) | Vdc/ac means both use dc and ac |
| Load resistance | (U-10)/0.02(ohms) / >100kohms | — |
| Insulation | >100M Ohms@50V | — |
| Electrics feature | Protection rank: IP68 | — |
| IP rate | G1/4, submersible | — |
| Response time | 10ms | — |
| Pressure junction | Gauge pressure and absolute pressure | — |
| Certification | Explosion proof certificate, CE certificate | — |
| Medium compatibility | Electromagnetic radiation: EN50081-1/-2 | — |
| Lightning proof | Air-conduction 8000V, Shell/cable 4000V | — |
Versatile level measurement for multiple industries and applications
Monitor hydraulic systems for optimal performance
Maintain consistent water pressure in supply systems
Critical monitoring for dam safety and management
Monitor groundwater levels for environmental monitoring
Coastal and offshore water level monitoring
Industrial tank level monitoring for various liquids
±0.1% to ±0.5% F.S accuracy with excellent long-term stability for reliable measurements.
Intrinsic safety, explosion proof, and CE certification for use in hazardous environments.
Multiple output options: 4-20mA, 0-5V, 0-10V with two-wire or three-wire configurations.
IP68 protection with submersible installation and vented cable for air reference.
OEM customization available with multiple measurement ranges and signal outputs.
Electromagnetic interference proof, lightning protection, and wide temperature range (-40~85°C).
